Pack Of: 1
Product Type: Nebulizer
Packaging Type: Mono-Carton
Model: SK 024
Warranty: 2 Year
Mfg. Lic. No.: MFG/MD/2024/000857
Product Information:

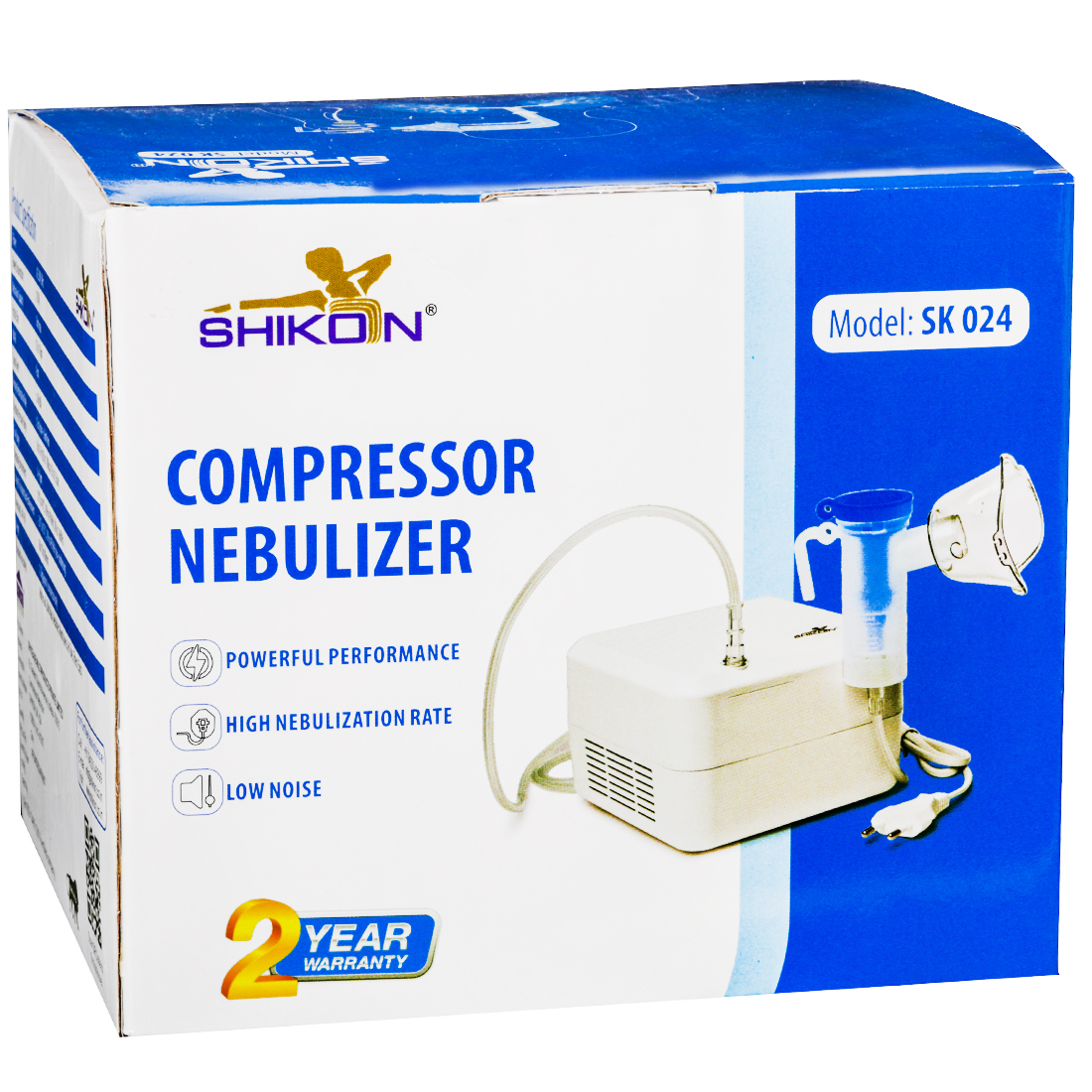

Shikon Compressor Nebulizer Device is powerful enough to efficiently deliver prescribed medication and helps in the treatment of asthma, allergies, and other respiratory disorders. Its direct high-flow technology ensures a high flow rate with low noise for effective nebulization.
This Pack Contains:
1 N Adult Mask
1N Child Mask
1 N Mouth Piece
1 N Air Tube
5 N Filters
Key Benefits:
- Helps in the treatment of asthma, allergies and other respiratory disorder.
- Ensure high flow rate with low noise for effective nebulization.
Product Specification:
Power: AC 230V50Hz
Power Consumption: 110VA
Medication Capacity: 10ml max
Particle Size: 0.5 to 10µm
MMAD: 4µm
Sound Level: = 60 dBA
Average Nebulization Rate: 0.2 ml/min~0.6ml/min
Operating Pressure Range: 8 to 16 Psi(50 to 100kpa/0.5 to 1.0 bar)
Flow Range: 6~8 Ipm
Operating Environment: 10°C to 40°C, 10% to 95%RH, 700 TO 160hPa
Storage & Transportation Environment: 20°C to 55°C, 10% to 95%RH (non-condensing)
Dimension(LxWxH): 160x150x100mm
Weight: 1.25kg approx (compressor only)
Usage Direction:
- Before using, always go through the leaflet or label instructions that come with the product.
- Gently twist the top part of the nebulizer cup counter-clockwise to disassemble the nebulizer cup.
- Fill the bottom section of the nebulizer cup with the prescribed medication. Gently twist the top part clockwise to ressemble the nebulizer cup.
- Attach one end of air tube to the base of the nebulizer cup. Attach the other end of the air tube to the tube connector located on the front of the compressor nebulizer.
- Attach mouth piece or mask as per the choice to the connector of nebulizer cup.
Safety & Other Related Information:
- Seek precautions during pregnancy & lactation.
- Keep out of reach of children.
Storage Condition:
- Store between 20°C to 55°C, 10% to 95%RH (non-condensing).
