Pack Of: 1
Number of Content In a Sales Package: 1 N
Product Type: Piston Compressor Nebulizer
Packaging Type: Mono-Carton
Model No: OD-304
Dimension: 19.5 cm (L) x 20 cm (H) x 11.5 cm (W)
Ideal For: Adults and Children
Warranty: 2 Years
Product Description:

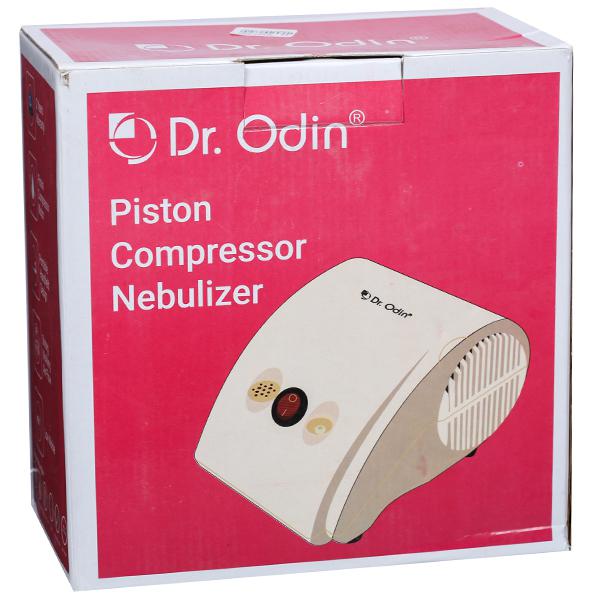

Piston Compressor Nebulizer (Dr. Odin) is a newly designed drug delivery device used for the treatment of upper and lower respiratory tract diseases, cough, asthma, rhinitis and sore throat.
Dr. Odin Piston Compressor Nebulizer comes with a robust working flow which can help medicine reach directly to the lungs.
Content of the box:
Adult Mask, Child Mask, Medication Cup, Tube, Mouth Piece and Air Filter.
Features:
- Piston compressor motor
- Portable handheld design
- Strong working airflow
- Low noise
- Medication capacity 6 ml
Usage Direction:
- Before use, please check the package insert leaflet or label instruction that comes with the product.
Caution:
- Keep the unit away from water
- Always unplug the product immediately after use
- Never block the air openings of the main unit
- Do not store the unit under direct sunlight
- Keep the unit out of reach of small children
- Wipe daily with a damp cloth
Technical Specification:
- Power: AC 230V, 50 Hz
- Current: 0.55 A
- Medication Capacity: 6 ml
- Particle Size: 0.5 to 10 µm
- MMAD: 4 µm
- Sound Level: Less than 60dB at 1 meter
- Maximum medication Capacity: 13 ml (cc)
- Compressor Pressure Range: 30 to 36 Psi (210 to 250Kpa/2.1 to 2.5bar)
- Operating Pressure Range: 8 to16 Psi (50 to 100 Kpa/0.5 to 1.0bar)
- Liter Flow Range: 6~8 Ipm
- Operating Temperature Range: 10°C to 40°C (50°F to104°F)
- Operating Humidity Range: 10 to 90% RH
- Dimension: 170 x 125 x 88
- Weight: 1.3 kg
Storage Conditions:
- Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
- Storage Humidity Range: 10 to 95% RH
- Keep out of reach of children.
